High Protection VFD510 IP55 Vector Control Inverter for Challenging Environments

VEIKONG Latest New Outlook VFD510 IP55 Vector Control VFD

1. The introduction fo VEIKONG VFD510 New series model:

The VFD510 series high protection inverter is an lP55 protection grade inverter launched by our company. VFD510 is aproduct developed and improved based on VElKONG VFD530 series. lt not only has the high-quality performance olVFD530 series, but also has the additional high protection function.The product is especially suitable for applicatiorenvironments with a lot of dust, oil, and water mist., VFD510 can drive both asynchronous motors and permanent magnesynchronous motors. lt has a standard STO function and supports a variety of encoder types and communicatiorinterfaces. lt has excellent performance, rich functions, good reliability and environmental adaptability.

2. The features of VEIKONG new series VFD510 IP55

1) Independent air duct design
Independent air duct design effectivelyprevents dust from entering the inverterand causing short circuit and other faultsthereby improving reliability;
The use of large air volume and long lifecooling fan effectively reduces the interna!temperature rise of theinverter andensures reliable and stable operation of theinverter.

2) Complete protection system
The whole series has STO protection,output short circuit protection to groundovercurrent protection, driver overloadprotection,motor overload protection.driverovertemperature protection,optionaPT100/PT1000/KTY84 motorovertemperature protection,etc
Depending on the fault type, it can be set tofault free stop, fault deceleration stop, faultcontinue to run, which brings convenienceto on-site emergency handling

3) Automatic spraying process of conformal coating
Multiple high-quality conformal coatingsare used to enhance theenvironmentaladaptability of the product.
The conformal coating adopts automaticspraying process to ensure the uniformityof the circuit board spraying thickness andthe consistency of product batching.

4) Wide voltage input range that complies with international standards
Rated voltage
Allowable voltagefuctuationrange
Input power
frequency
Single-phase/three-phase 220V models200V~240V
Three-phase380Vmodels:380V~480V
-15%-10%
50Hzor 60Hz.allowablefluctuation range +5%

5) Thermal design simulation experiment
The accurate thermal simulation platform software is used toensure the reliability of thermal simulation. The VFD510 seriesinverters have all undergone thermal simulation tests. Only withinthe thermal simulation safety design requirements, physicaprototypes are developed.After actual testing,the thermasimulation results are very close to the physical test results. Underextreme test conditions, thermal simulation can replace actual loadsimulation, adding an extra layer of scientific thermal testing.

6) Strict temperature rise test
The whole Drive temperature rise test adopts the most stringentcycle overload test to ensure long-term reliable operation underextremeload conditions.
Cyclic overload test: At an ambient temperature of 50°, run at 1.5times the overload current for 1 minute, then run at the ratedcurrent for 4 minutes, and then run at 1.5 times the rated current for1 minute. This continuous cycle runs for 5 minutes per cycle untithe system reaches a thermal equilibrium state and the whole Driveis within the thermal design safety range.

7) Full-cycle testing
During product development, the whole PCB boardwill be systematicallytested.After assembly, thewhole machine will be tested and the EMCenvironment wil be tested.After passing thequalityinspection,a12-hour, 50°C high-temperature aging test will be performed to ensurethe delivery quality of the entire series of products.

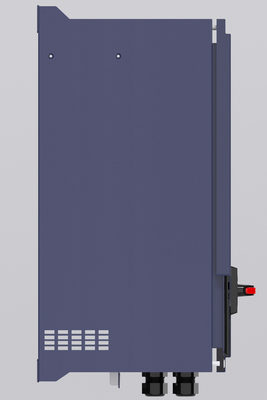

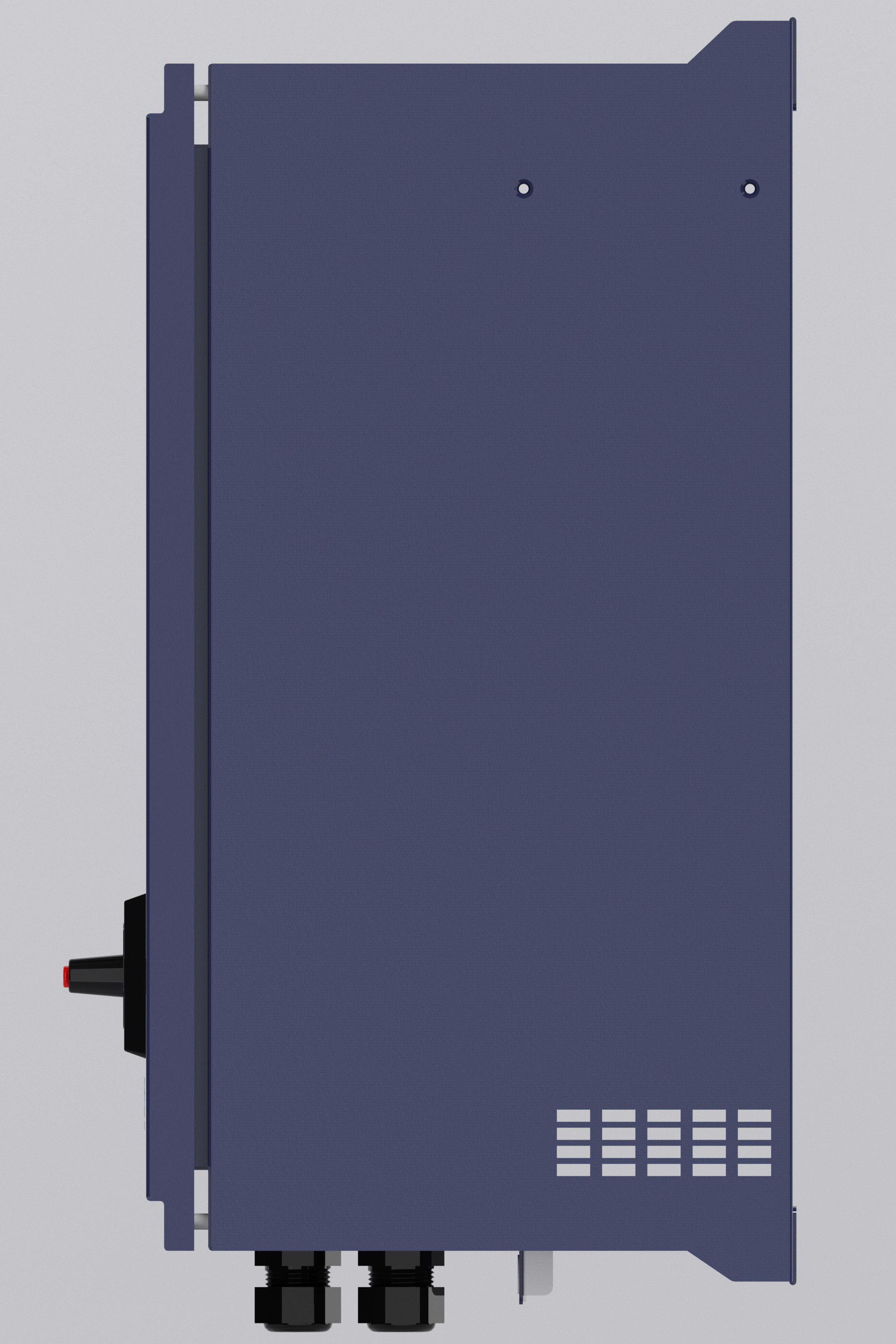

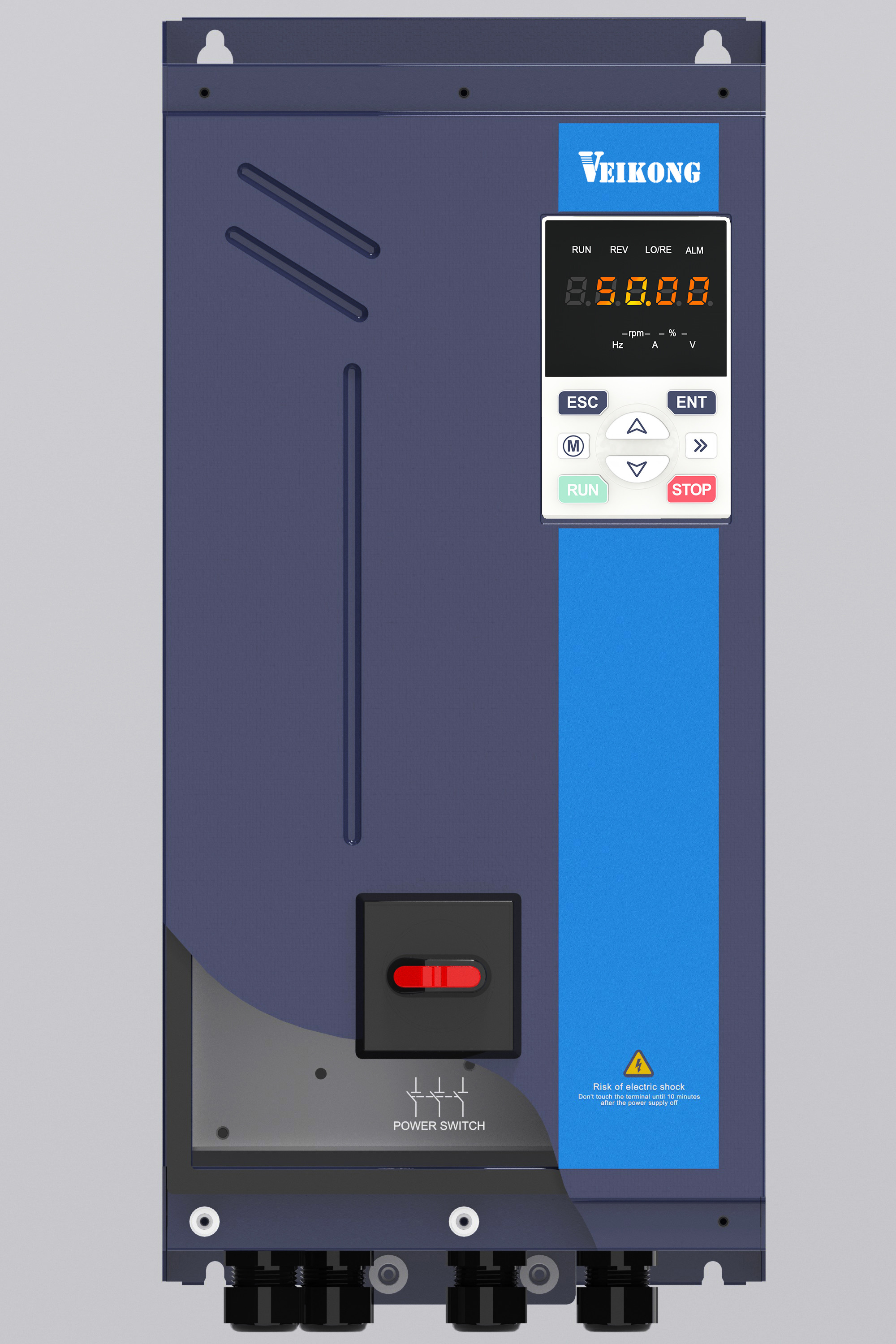

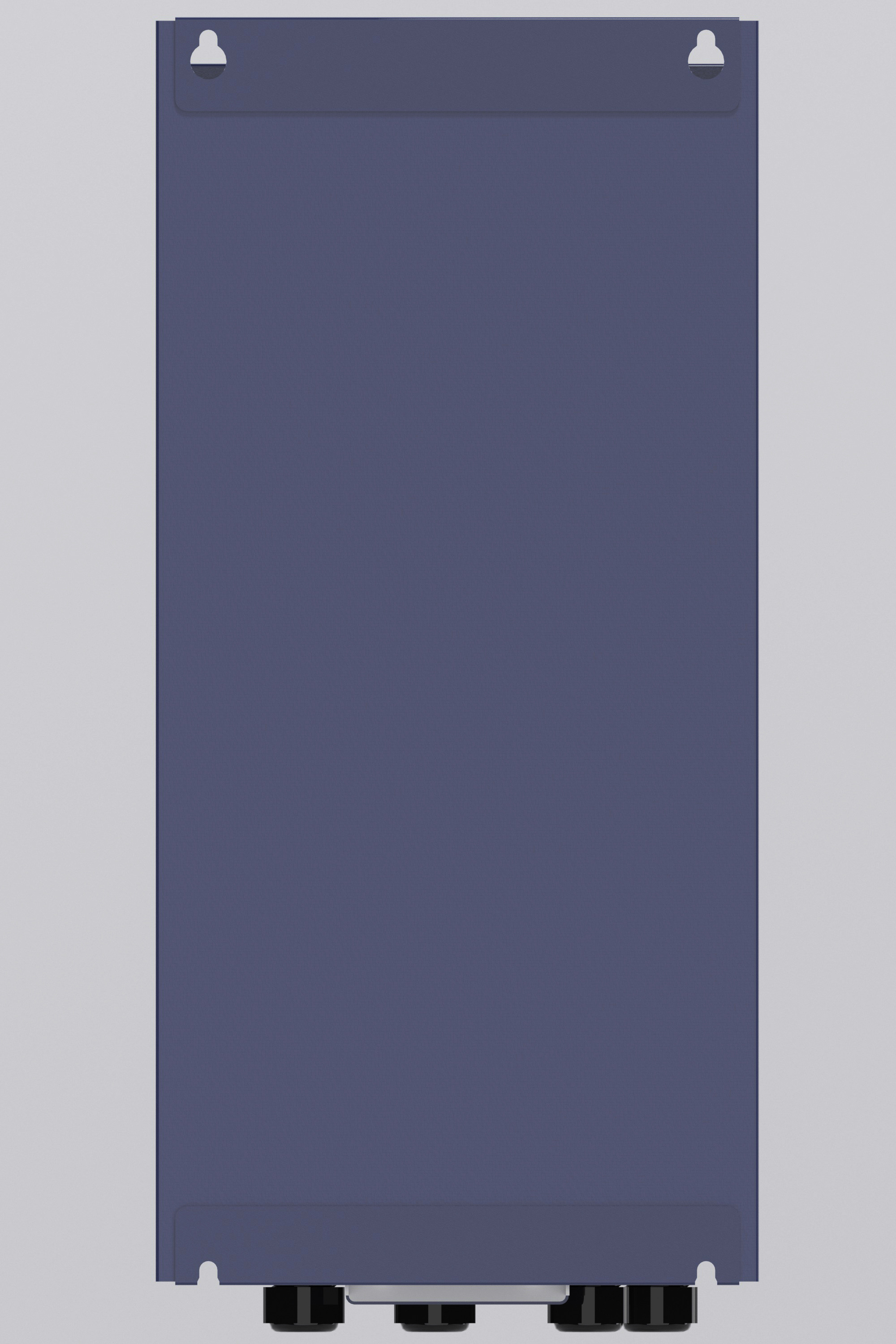

3. VEIKONG Product Size and all sides showing

Production Selection Table
